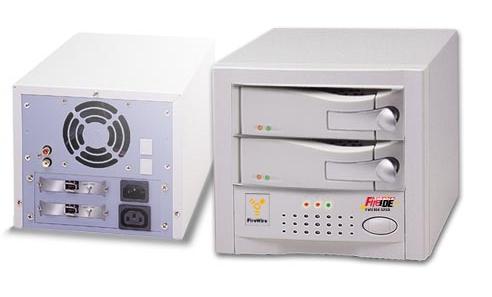

BB-FWEIDE525D-MR2-2 FireWire Enclosure
(Support Two Hard Disk Drives)










Enhance FireIDE







APPLICATIONS:

BB-FWEIDE525-MR2-2 delivers the performance and connectivity required for servers and I/O demanding applications such as Video-On-Demand, database servers, workstations, high-end desktops, software RAID sub systems, and image systems.

BENEFITS:

BB-FWEIDE525D-MR2 FireWire Enclosure Feature:
bluebullet.gif (834 bytes) Compliant IEEE 1394 and compatible with proposal 1394A
bluebullet.gif (834 bytes) Fully Supports ATA33/66/100/133 Interface
bluebullet.gif (834 bytes) Hot-Swap, Plug & Play, *no need install drivers
bluebullet.gif (834 bytes) Fit 3.5" form factor Two IDE hard disk drives,
Complies with T13's ATA/ATAPI-6 Draft Specification:
 Fully Supports 48-bit addressing for large hard drives (>128GB) including IEEE1394 interface
 Seagate 160GB, IBM 180GB, Western Digital 250GB, Maxtor 300GB HDD Supported
bluebullet.gif (834 bytes) The Inner HDD tray and mounting frame were made by aluminum which is good for heat dissipation

Key lock + power switch make hot-swappable

bluebullet.gif (834 bytes) Save Money, Easy installation, 43Mbyte/sec Max., No need ID or Terminator setting

Hardware Requirements:
bluebullet.gif (834 bytes) Desktop PC: with either a built-in IEEE1394 port or a IEEE1394 to PCI Host Adapter

Notebook PC: with either a built-in IEEE1394 port or a IEEE1394 to CardBus PC Card

OS Requirements:
bluebullet.gif (834 bytes) *Supports Windows 98SE/ME/2000/XP built-in SBP2 drivers
Mac OS 9.1, Mac OS-X 10.x or later
Linux 2.4 Kernel or later

Additional Links / Notes:
IEEE1394 Patch
bluebullet.gif (834 bytes) Windows 2000 User:IEEE1394 Services Pack 4 (Recommend)
Download Windows 2000 SP4
Download Windows XP SP1
bluebullet.gif (834 bytes) BB-582DUAL Dual Channel 800Mbits IEEE1394 FireWire Card
bluebullet.gif (834 bytes) #Software RAID 0,1 for Windows 2000, Mac OS
www.raidtoolbox,com








Specifications are subject to change without notice.
All brands and product names are trademarks of their respective companies
All Products are made in Taiwan
