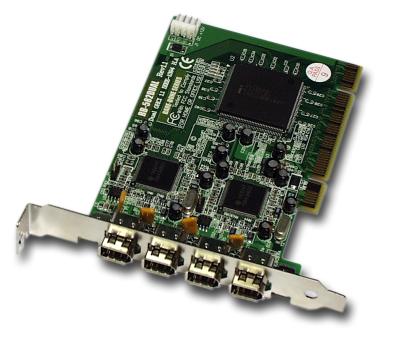

BB-582DUAL TI IEEE1394a DUAL OHCI PCI Host Controller
(800Mbits Dual Channel)





BB-582DUAL









BB-582DUAL 1394 FireWire Card delivers the performance and connectivity required for servers and I/O demanding  applications such as CD-ROM servers, Video-On-Demand, database servers, workstations, high-end desktops, #software RAID sub systems, and image systems.

On a single PCI slot, connecting up to 126 devices. It transfers data rate up to 50 MBytes/second per independent channel and takes advantages of the 133MBytes/second burst rate of PCI bus to provide unmatched I/O performance.



BB-582DUAL TI IEEE1394a Dual OHCI PCI Host Controller (800Mbits Dual Channel) Feature:
bluebullet.gif (834 bytes) Fully supports provisions of IEEE Std 1394-1995 for high-performance serial bus and the IEEE Std 1394a-2000
bluebullet.gif (834 bytes) Fully interoperable with FireWire and i.LINK implementations of IEEE Std 1394
bluebullet.gif (834 bytes) Full IEEE Std 1394 support includes: connection debounce, arbitrated short reset, multispeed concatenation, arbitration acceleration, fly-by concatenation, and port disable/suspend/resume
bluebullet.gif (834 bytes) Four IEEE Std 1394a-2000 fully compliant cable ports at 100Mbits/s, 200Mbits/s, and 400Mbits/s (#800Mbits Dual Channel)
bluebullet.gif (834 bytes) Implements PCI Burst Transfers and Deep FIFOs to Tolerate Large Host Latency
bluebullet.gif (834 bytes) 32-bit PCI local bus complies with PCI 2.1 and 2.2 specification. Provides DUAL Channel & Four General Purpose I/Os
bluebullet.gif (834 bytes) 12VDC Connector (External device for example: BB-FWEIDE25 2.5" HDD or 1394 Hubs)
bluebullet.gif (834 bytes) Connecting up to 63 IEEE1394/FireWire devices
bluebullet.gif (834 bytes) Digital Video and Audio performance enhancements.
bluebullet.gif (834 bytes) Extended resume signaling for compatibility with legacy DV components.
bluebullet.gif (834 bytes) JVC, Panasonic, Sharp, Canon, Sony DV/D8 Camcorder Supports

Hardware Requirements:
bluebullet.gif (834 bytes) Intel PC or Apple Computer with One PCI Slot

OS Requirements:
bluebullet.gif (834 bytes) *Supports Windows 98SE/ME/2000/XP/2003 built-in OHCI drivers
Mac OS 9.1, Mac OS-X 10.x or later
Linux 2.4 Kernel or later

Additional Links / Notes:
IEEE1394 Patch
bluebullet.gif (834 bytes) Windows 20000 User:IEEE1394 Services Pack 4 (Recommend)
Download Windows 2000 SP4
Download Windows XP SP1
bluebullet.gif (834 bytes) BB-U2FWEIDE525-2 FireWire 5.25" Enclosure (FireWire CD/DVD Duplicator)
bluebullet.gif (834 bytes) #You can use BB-FWEIDE525D-MR2 FireWire RAID to get 800Mbit/sec Max. data transfers








Specifications are subject to change without notice.
All brands and product names are trademarks of their respective companies
All Products are made in Taiwan
