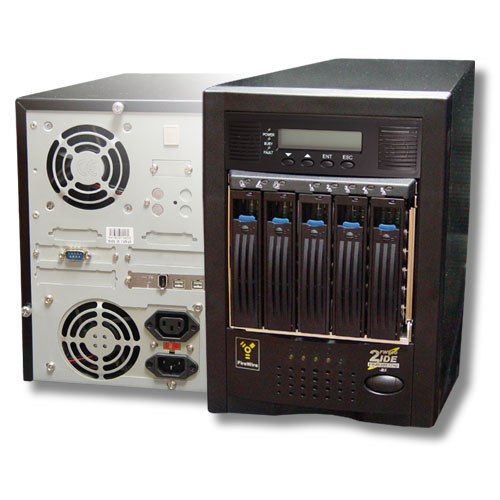

BB-FWBEIDE525Q-R5 IEEE1394b to IDE 5.25" Enclosure
(Hardware RAID 5)







Enhance FireIDE







INTRODUCTION

FWBEIDE525Q-R5 takes full advantage of high-speed 1394 serial bus and Ultra DMA 133 ATA Bus allowing for multi-user and multitasking performance. FWBEIDE525Q-R5 delivers the performance required for servers and I/O demanding applications such as Video-On-Demand, database servers, workstations, high-end desktops, and image systems.  FWBEIDE525Q-R5 allows users to easily hot-swap ATA drive without interrupting the current operation.
FWBEIDE525D-R5 combines three key components:

  1. FireWire800 (IEEE 1394b) to ATA Bridge Board
  2. IDE-RAID-IDE Subsystem Hardware RAID 5 Controller
  3. Quadra 5.25" Bays Enclosure

BB-FWBEIDE525Q-R5 IEEE1394b to IDE 5.25" Enclosure (Hardware RAID 5) Feature:
bluebullet.gif (834 bytes) New INITIO-2430L IEEE1394b to IDE & TI IEEE1394b Chipsets
bluebullet.gif (834 bytes) Compliant IEEE 1394b-2002 and compatible with proposal 1394a-2000
bluebullet.gif (834 bytes) Implements SBP3/SBP2 stack to optimize the performance (SBP-3 faststart support)
bluebullet.gif (834 bytes) Integrated internal ARM7TDMI 32-bit CPU with embedded SRAM
bluebullet.gif (834 bytes) ONE 6pin and TWO 9pin Connectors (For 1394a or 1394b connection)
bluebullet.gif (834 bytes) Fully Supports UDMA33/66/100/133 IDE Device Interface
bluebullet.gif (834 bytes) Fit 3.5" form factor FIVE IDE hard disk drives for RAID 5 Function:
Seagate, Maxtor, IBM (Hitachi), Western Digital, etc Hard Drive,
 Complies with T13's ATA/ATAPI-7 d1532r2, vol. 1 & 2 Specification:
 Fully Supports 48-bit addressing for large hard drives (>128GB)
 Seagate 200GB, IBM 180GB, Western Digital 250GB, Maxtor 300GB HDD Supported
bluebullet.gif (834 bytes) Hot-Plug, Plug & Play, *no need install drivers
bluebullet.gif (834 bytes) Save Money, Easy installation, No need setup ID or Terminators
100Mbytes/sec Max. Data Transfers
IDE RAID Controller:
  • 64bit RISC 200MHz Processor
  • 64MB Memory with ECC-Protection
  • Form Factor: 3 Consecutive 5.25" Drive Bays
  • Provide five IDE Mobile Rack for 3.5" ATA HDD
  • Support up to UDMA 133/100/66/33
  • Support RAID level 0, 1, (0+1), 3, 5 and JBOD
  • Hot-Swap, Hot-Spare and Auto-Rebuilding Function Support
  • OS Independence, require no device driver
  • Web Browser-Based RAID Manager via HTTP Proxy Through RS-232 port for Windows and Linux System.

LCD Control Panel: To simplify the RAID setup and management of the associated disk drives.

  • Allows manual RAID configuration and status monitoring
  • Uses hardware monitor to monitor system voltage, temperature and fan activity
  • Displays warning message on LCD screen when respective disk encounters problems

Hardware Requirements:
bluebullet.gif (834 bytes) Desktop PC: with either a built-in IEEE1394b port or a IEEE1394 to PCI Host Adapter
bluebullet.gif (834 bytes) Notebook PC: with either a built-in IEEE1394b port or a IEEE1394 to CardBus PC Card

OS Requirements:
bluebullet.gif (834 bytes) *Supports Windows 2000/XP/2003 built-in SBP2 drivers (FireWire 800)
*Mac OS-X 10.2.5 or later
Linux 2.4 Kernel or later

Additional Links / Notes:
bluebullet.gif (834 bytes) Windows 2000 User:IEEE1394 Services Pack 4 (Recommend)
Download Windows 2000 SP4
Download Windows XP SP1
bluebullet.gif (834 bytes) BB-FWB-PCI01 IEEE1394b 800Mbits FireWire Card
BB-FWB-PCI01








Specifications are subject to change without notice.
All brands and product names are trademarks of their respective companies
All Products are made in Taiwan
