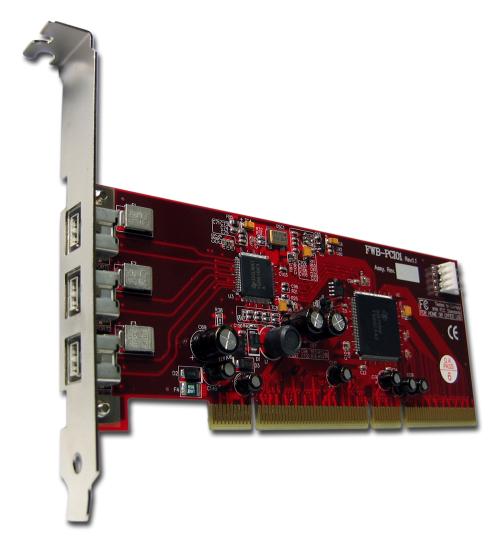

BB-FWB-PCI01 32/64bit PCI TI OHCI IEEE1394b Host Controller (800Mbits)

















FWB-PCI01 is designed to meet the demanding requirements of today’s 1394 bus architecture.  Its capability of performing 800M bits/s transfer speed enables the throughput and bandwidth to move data efficiently and quickly between the PCI and 1394 buses.  FWB-PCI01 also provides outstanding ultra-low power operation and intelligent power management capabilities.

FWB-PCI01's improved throughput and increased bandwidth make it ideal for today’s high-end PCs.  It opens the door for the development of S800 RAID- and SAN-based peripherals.  The data transfer rates of FWB-PCI01 are 100Mbits/s, 200Mbit/s, 400Mbits/s, & 800Mbits/s.



BB-FWB-PCI01 32/64bit PCI TI OHCI IEEE1394b Host Controller (800Mbits) Feature:
bluebullet.gif (834 bytes) New Texas Instruments TSB82AA2 (OHCI-Lynx Controller) and
 Texas Instruments TSB81BA3 (IEEE-1394b Transceiver/Arbiter) Chipsets
bluebullet.gif (834 bytes) Fully Supports Provisions of IEEE P1394b Revision 1.33+ at 1-Gigabit Signaling Rates
bluebullet.gif (834 bytes) Fully Supports Provisions of IEEE 1394a-2000 and 1394b-2002 Standard for High Performance Serial Bus
bluebullet.gif (834 bytes) Fully Interoperable With Firewire., i.LINK., and SB1394. Implementation of IEEE Std 1394
bluebullet.gif (834 bytes) 3 External 9pin (bilingual) ports at 100Mbits/s, 200Mbits/s, 400Mbits/s and *800Mbits/s
Backward compatible with 1394a (FireWire 400)
bluebullet.gif (834 bytes) 33-MHz/64-bit and 33-MHz/32-bit selectable PCI interface
bluebullet.gif (834 bytes) D0, D1, D2, and D3 power states and PME events per the PCI Bus Power Management Interface Specification
bluebullet.gif (834 bytes) bus power your peripherals on each of the 3 ports with up to 18W per port with an optional internal power cable
bluebullet.gif (834 bytes) 12VDC Connector (External device for example: BB-U2FWEIDE25 2.5" HDD or 1394 Hubs)
bluebullet.gif (834 bytes) Connecting up to 63 IEEE1394/FireWire devices
bluebullet.gif (834 bytes) JVC, Panasonic, Sharp, Canon, Sony DV/D8 Camcorder Supports
bluebullet.gif (834 bytes) Can DV-IN by supported DV Camcorder with Cable (Optional)

Hardware Requirements
bluebullet.gif (834 bytes) Intel PC or Apple Power Mac G4 with One available 33MHz/32bit or 33MHz/64bit PCI Slot

OS Requirements
bluebullet.gif (834 bytes) Supports Windows 98SE/ME/2000/XP/2003 built-in OHCI drivers for 1394a 400Mbits
 Supports Windows 98SE/ME/2000/XP/2003 built-in OHCI drivers for 1394b 800Mbits
Mac OS-X 10.2.5 or later
Linux 2.5 Kernel or later

Additional Links / Notes
IEEE1394 Patch
bluebullet.gif (834 bytes) Windows 2000 User:IEEE1394 Services Pack 4 (Recommend)
Download Windows 2000 SP4
Download Windows XP SP1
bluebullet.gif (834 bytes) BB-U2FWEIDE525-2 FireWire 5.25" Enclosure (FireWire CD/DVD Duplicator)
bluebullet.gif (834 bytes) BB-FWEIDE525D-800 FireWire 5.25" Dual-Bay Enclosure (1394b 800Mbits)
bluebullet.gif (834 bytes) *Must use with 1394b 9pin to 9pin Cable for 800Mbits Transfers
bluebullet.gif (834 bytes) Windows 98SE/ME may be not perfectly at FireWire 800.

9 pin to 4 pin

 9 pin to 6 pin 9 pin to 9 pin
