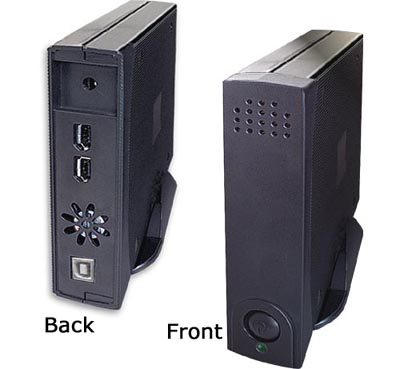

BB-U2FWEIDE35 IDE (IEEE1394 + USB 2.0 Combo) 3.5" Enclosure
















BB-U2FWEIDE35 IDE to (IEEE1394 + USB 2.0 Combo) 3.5" Enclosure Feature:
bluebullet.gif (834 bytes) INITIO INIC-1430L IDE to 1394 + NEC IEEE1394 Chipsets (IEEE1394 Interface)
bluebullet.gif (834 bytes) ISD-300A1 IDE to USB 2.0 Chipsets (USB 2.0 Interface)
bluebullet.gif (834 bytes) 1394a-2000 Compliant, USB 1.1/2.0 Compliant (Full/Hi-Speed)
bluebullet.gif (834 bytes) Two 6pin 1394 & One B-Type USB Connectors
bluebullet.gif (834 bytes) Fully Supports ATA33/66/100/133 Interface
bluebullet.gif (834 bytes) Hot-Plug, Plug & Play, *no need install drivers
bluebullet.gif (834 bytes) Can connect most IDE Interface: Seagate, Quantum, Maxtor, IBM (Hitachi), Western Digital, etc Hard Drive,
Complies with T13's ATA/ATAPI-6 Draft Specification:
Fully Supports 48-bit addressing for large hard drives (>128GB) for IEEE1394 interface
(Seagate 120GB, IBM 180GB, Western Digital 200GB, Maxtor 250GB HDD Supported)
bluebullet.gif (834 bytes) Built-in Auto-Switching 90-240V Power Adapter
bluebullet.gif (834 bytes) Save Money, Easy installation, No need setup ID or Terminators and 43Mbyte/sec Max. Data Transfers (400/480Mbps)
bluebullet.gif (834 bytes) With 6p to 6p IEEE1394 Cable, A to B-Type USB 2.0 Cable, Power cord & Win98 Drivers

Hardware Requirements

bluebullet.gif (834 bytes) Desktop PC: with either a built-in IEEE1394/USB port or a IEEE1394/USB to PCI Host Adapter
bluebullet.gif (834 bytes) Notebook PC: with either a built-in IEEE1394/USB port or a IEEE1394/USB to CardBus PC Card

OS Requirements

bluebullet.gif (834 bytes) *Supports Windows 98SE/ME/2000/XP built-in SBP2 drivers
Mac OS 9.1,
Mac OS-X 10.x or later
Linux 2.4 Kernel or later

Additional Links / Notes

IEEE1394 Patch
bluebullet.gif (834 bytes) Windows 2000 User:IEEE1394 Services Pack 4 (Recommend)
Download Windows 2000 SP4
Download Windows XP SP1








Specifications are subject to change without notice.
All brands and product names are trademarks of their respective companies
All Products are made in Taiwan
