BB-FWB2ATA35D (IEEE1394a + 1394b) to IDE
3.5" HDD Dual Bay Enclosure



PDS2GO Series

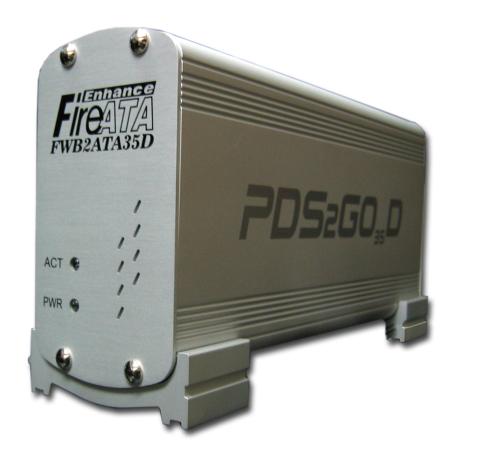

FWB2ATA35D is a FireWire800 (IEEE 1394b) to ATA Dual 3.5" bay external enclosure.  FWB2ATA35D is ideally suited for tailgate interface applications for two ATA HDDs.   It allows IDE drives (Master and Slave) to be connected to a FireWire (IEEE 1394) serial bus in a plug-and-play fashion.

FWB2ATA35D provides the perfect solution for data backup and transferring of data between computers using IDE (ATA/ATAPI) devices.

BB-FWB2ATA35D (IEEE1394a + 1394b) to IDE 3.5" HDD Dual Bay Enclosure Feature:

bluebullet.gif (834 bytes) Compliant IEEE 1394b-2002 and compatible with proposal 1394a-2000
bluebullet.gif (834 bytes) Two Bilingual 9pin & One 6pin 1394 Connectors
bluebullet.gif (834 bytes) Fully Supports ATA33/66/100/133 Interface
bluebullet.gif (834 bytes) Hot-Plug, Plug & Play, *no need install drivers
bluebullet.gif (834 bytes) Fit 3.5" form factor IDE hard disk drive,
Complies with T13's ATA/ATAPI-7 Draft Specification:
Fully Supports 48-bit addressing for large hard drives (>128GB) including IEEE1394 interface
500GB HDD Supported
bluebullet.gif (834 bytes) Enhanced Feature: Easy Installation, Faster, Save More Energy and Portable Design
 - The power of 3.5" HDD will be removed when computer enters "Hibernation" state.
 - Shut down the computer will turn-off the power of 3.5" ATA HDD automatically.
bluebullet.gif (834 bytes) Aluminum Enclosure Cooling Fan Design: good heat dissipation
bluebullet.gif (834 bytes) Save Money, Easy installation, No need setup ID or Terminators and 80Mbyte/sec Max. Data Transfers (400/800Mbps)
bluebullet.gif (834 bytes) With 9pin to 6pin IEEE-1394b Cable and AC 100 ~ 240 V to DC +12V 4A Power Adapter

Hardware Requirements:

bluebullet.gif (834 bytes) Desktop PC: with either a built-in IEEE1394 (9pin or 6pin) / USB port or a IEEE1394 (9pin or 6pin) / USB to PCI Host Adapter
bluebullet.gif (834 bytes) Notebook PC: with either a built-in IEEE1394 (9pin or 6pin) / USB port or a IEEE1394 (9pin or 6pin) / USB to CardBus PC Card

OS Requirements:

bluebullet.gif (834 bytes) *Supports Windows 98SE/ME/2000/XP/2003 built-in SBP2 drivers (FireWire 800)
*Mac OS-X 10.2.5 or later (FireWire 800)
Linux 2.4 Kernel or later
(FireWire 800)

Additional Links / Notes:

IEEE1394 Patch
bluebullet.gif (834 bytes) Windows 2000 User:IEEE1394 Services Pack 4 (Recommend)
Download Windows 2000 SP4
Download Windows XP SP2
Roxio Toast Titanium Burning Tools
bluebullet.gif (834 bytes) BB-FWB-PCI01 IEEE1394b 800Mbits FireWire Card

Windows 98SE/ME may be not perfectly at FireWire 800 feature.




Specifications are subject to change without notice.
All brands and product names are trademarks of their respective companies
All Products are made in Taiwan
