BB-VB16  Voodoo Banshee 16MB SGRAM AGP Display Card

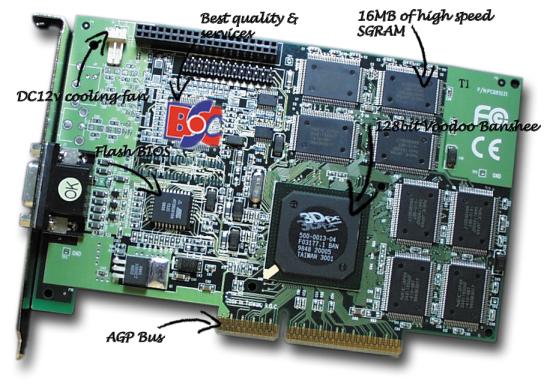

BSC-VB16 AGP 3D Display Card
Specifications
1X AGP BUS
3Dfx interactiveTM Voodoo BansheeTM Chipset
16MB SGRAM
Support 3Dfx interactiveTMˇ¦s GlideTM native interface OpenGL, Direct3D, DirectDraw and DirectX, Window 95/98/NT.40
Dimensions 180mm(L) x 152mm(W)
Advanced 3D benefits
3D rendering
16-bit Z-buffering with biasing
Triangle parameters, multi-triangle strips and fans, transparency and chroma-key with dedicated color mask, alpha blending, sub-pixel and sub-texel correction to 0.4x0.4 resolution , 24-bit color dithering to native 16-bit RGB, per-pixel fog/haze effects, polygon-edge anti-aliasing, etc.
3D texture mapping
Perspective-corrected 3D texture mapping
RGB modulation/addition/blending and texture compositing
14 input formats for texture maps , 8-bit palette textures, texture compression
Per-pixel level-of-detail (LOD) MIP mapping with biasing and clamping, etc.
Features
Graphics:
AGP 1X with sideband addressing and pipelining
Full featured 128-bit BitBlt engine
100MHz single-cycle 128-bit windows GUI acceleration
Up to 1600x1200 at refresh rates above 76 Hz
Software DVD accelerated
Multiple video window support and bilinear horizontal and vertical filtering
Supports DDC 2B
