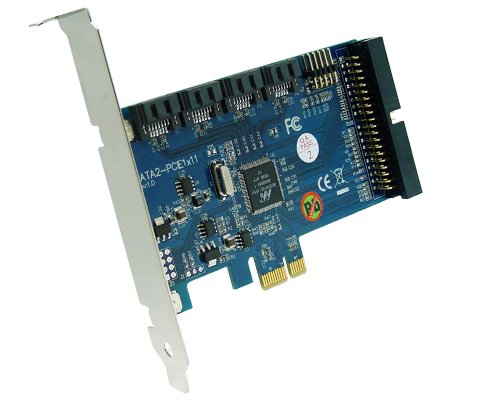

BB-SATA2-PCIE1X11 Multiple port Serial ATA (SATA)/Parallel ATA (PATA) to PCI Express Host Adapter





SATA2-PCIE1x11 is a multiple port Serial ATA (SATA)/Parallel ATA (PATA) to PCI Express (PCIE) Host Adapter. SATA2-PCIE1x11 takes advantages of the 2.5 Gb/s burst rate of 1-lane PCI Express bus and the Serial ATA Generation 2 transfer rate of 3.0 Gb/s (300 MB/s) interface. This solution provides full PCI Express and Serial ATA (SATA)/Parallel ATA (PATA) functionality and performance. SATA2-PCIE1x11 delivers the performance and connectivity required for servers and I/O demanding applications such as CD-ROM servers, Video-On-Demand, database servers, workstations, high-end desktops, software RAID sub systems, and image systems.


BB-SATA2-PCIE1X11 Multiple port Serial ATA (SATA)/Parallel ATA (PATA) to PCI Express Host Adapter Feature:

  • PCI Express 1.0a compliant - Supports 1-lane 2.5 Gb/s PCI Express interface
  • PCI Express Programming interface
    • Compatibility mode via PCI I/O access for legacy host software
    • Enhanced Mode for SATA ports via Enhanced Mode Registers.
    • Enhanced Mode for PATA port via Enhanced Mode Registers.
  • Supports up to 2Mbit external Flash for option ROM or Boot ROM
  • Supports SPI Flash Interface for retrieving boot code and vendor specific PCI Configuration content.
  • Supports TWSI EEPROM interface for retrieving vendor specific PCI Configuration content.
  • Serial ATA (SATA) specification 2.5 compliant.
    • Supports SATA PHY 3.0 Gb/s with speed negotiation to SATA 1.5Gb/s.
    • Supports electrical specifications of Gen1i, Gen1m, Gen1x, Gen2i, Gen2m, Gen2x, and usage models of eSATA and xSATA
    • Supports four independent Serial ATA ports
  • Serial ATA (SATA) protocols over SATA ports.
    • ATA and ATAPI commands
    • Native Command Queuing (NCQ)
    • Hot Plug
    • Port Multiplier
    • Supports SATA Port Selector Switching
  • Parallel ATA (PATA) protocols over PATA port.
    • Supports one Parallel ATA port
    • ATA and ATAPI commands
    • All modes of PIO, Multiword DMA, and Ultra-DMA (up to 150MB/s)
    • Tagged Command Queuing (TCQ) with 32 outstanding commands per port
    • Master and Slave configuration (over PATA port)
  • Supports interrupt Coalescing over SATA and PATA ports in Enhanced Mode.
  • Supports SMBus for communication with Hardware Monitoring ICs.

Hardware Requirements

  • Intel PC with One available PCI Express Slot (Min. PCI Express x1 Slots)

OS Requirements

  • Drivers for Windows 2000/XP/2003/Vista and Linux 2.6.X
  • RAID GUI utility (RAID 0, 1, 10, 5)

Additional Links / Notes




Specifications are subject to change without notice.
All brands and product names are trademarks of their respective companies
All Products are made in Taiwan
