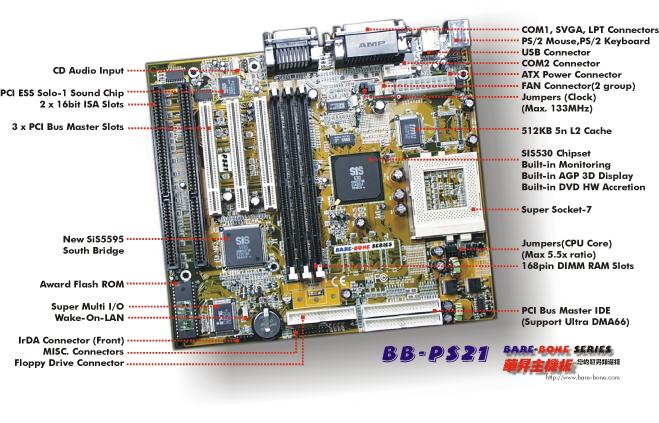

| Specification of PS21 |
|
| Processor: |
 |
Supports all SOCKET-7 Intel Pentium, AMD
K5,K6,K6-2, CyrixM2 ,IDT C62 and other Pentuim compatible CPUs |
|
| Chipsets: |
|
SiS 530 PCI/AGP VGA controller, include AGP VGA for hardware 2D/3D video/graphics accelerators, DVD hardware accelerator |
|
SiS 5595 PCI System I/O controller (Ultra
DMA66, PCI 2.2) |
|
512KB pipeline burst synchronous SRAM |
|
100MHz VGA bus Supports up to 800 MB/s UMA VGA
Memory, higher than 533MB/s AGP BUS |
|
| BIOS: |
|
Award BIOS 1Mbit flash ROM support PnP, PCI
2.1, CD-ROM, ATAPI, LS-120, and any IDE device bootable |
|
| CPU Clock Select: |
|
Supports 66,75,83, 100, 112, 124 & 133MHz
Front Side Bus clock |
|
| System Memory: |
|
3 x 168pin DIMM slots support mixed
momory technologies: Synchronous DRAM(SDRAM) up to 768MB RAM |
|
| On-board Multi I/O: |
|
1 x FDD Port support up to 2.88MB |
|
1 x Parallel Port (LPT) support ECP/EPP |
|
2 x High Speed Serial (16C550 UART) Ports |
|
2 x IDE Ports support Ultra DMA/66 |
|
2 x Universal Serial (USB) Ports |
|
1 x PS/2 Keyboard Port |
|
1 x PS/2 Mouser Port |
|
2 x IrDA Front and Rear Port |
|
1 x VGA port |
|
| PCI Bus Master IDE: |
|
PCI enhanced IDE interface with 4 IDE devices |
|
Supports up to PIO Mode 4, Ultra DMA66 |
|
Supports ATAPI compliance device included DVD
devices |
|
| Expansion Slots: |
|
2 x 16-bit ISA slots with 100% ISA compatible
functions |
|
3 x 32bit PCI slots supporting PCI Bus Master
slots conform with PCI specifications version 2.1, 2.2 |
|
| Options: |
|
2 x Infrared(IrDA)wireless interface kit |
|
2 x Universal Series Bus(USB) connector kit. |
|
| Extended Features: |
|
24bit true color RAMDAC up to 230MHz pixel clock, support 1024*768 8/16/32 bpp @85Hz
NI |
|
Programmable 2MB, 4MB, and
8MB shared frame buffer |
|
SiS 530 OnChip Hardware monitoring: TEMPERATURE,
VOLTAGE, FAN SPEED MONITOR feature |
|
Compliant with Y2K & Advanced Configuration and Power Interface(ACPI) |
|
Onboard ESS Solo PCI 3D Sound Chip |
|
| Dimensions: |
|
240mm x 220mm (L x W) |
|
| Form Factor: |
|
Micro ATX form factor, support ATX or Micro-ATX Format |
|
