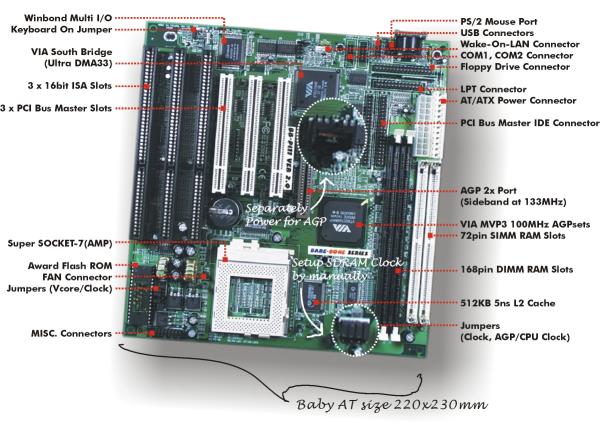

| Specification of PI11 |
|
| Processor: |
 |
Supports all SOCKET-7 Intel Pentium, AMD
K5,K6,K6-2,K6-3, CyrixM2 & IDT C62 (AMD K6-2/3 400 Passed!) |
|
| Chipsets: |
|
VIA VT82C598MVP 100MHz AGP North Chipset |
|
VIA VT83C586 South Bridge(Ultra DMA33
enhanced) |
|
512KB 5ns High Speed of Secondary Cache |
|
| BIOS: |
|
Award BIOS 1Mbit flash ROM support PnP, PCI
2.1, CD-ROM, ATAPI, LS-120, and any IDE device bootable |
|
| CPU Clock Select: |
|
Supports 66,75,83, 100 Front Side Bus clock |
|
| System Memory: |
|
2 x 168pin DIMM & 2 x 72pin SIMM slots
support mixed momory technologies: Extended Data Output(EDO), Fast Page(FP)DRAM,
Synchronous DRAM(SDRAM) up to 512MB RAM |
|
| On-board Multi I/O: |
|
Winbond W83977TF I/O Chip |
|
1 x FDD, 1 x ECP/EPP Parallel, 2 x (16C550
UART)COM ports |
|
1 x PS/2 Mouse port, 1 x AT Keyboard port |
|
| PCI Bus Master IDE: |
|
PCI enhanced IDE interface with 4 IDE devices |
|
Supports up to PIO Mode 4, Ultra DMA Mode 2
(Ultra DMA33) |
|
Supports ATAPI compliance device included DVD
devices |
|
| Expansion Slots: |
|
1 x AGP 1.0 compliance interface supports both
1x and 2x speed mode with sideband address capability |
|
3 x 16-bit ISA slots with 100% ISA compatible
functions |
|
3 x 32bit PCI slots supporting PCI Bus Master
slots conform with PCI specifications version 2.1 |
|
| Options: |
|
2 x Infrared(IrDA)wireless interface kit |
|
2 x Universal Series Bus(USB) connector kit. |
|
| Extended Features: |
|
Separately for AGP
(Fully Compatible with i740, RivaTNT, Voodoo Banshee, etc.) ; ISO-9002 manufacture certificate |
|
3 x 16-bit ISA slots with 100% ISA
compatible functions |
|
Keyboard,
Mouse, Modem & LAN power on/wake up feature with ATX power supply |
|
Compliant
with Y2K & Advanced Configuration and Power Interface(ACPI) |
|
2.0V to 3.5V Core, 0.1V Select, support K6-3 2.3V Core |
|
| Dimensions: |
|
230mm x 220mm (L x W) |
|
| Form Factor: |
|
Baby AT form factor, AT or ATX Power |
|
|
