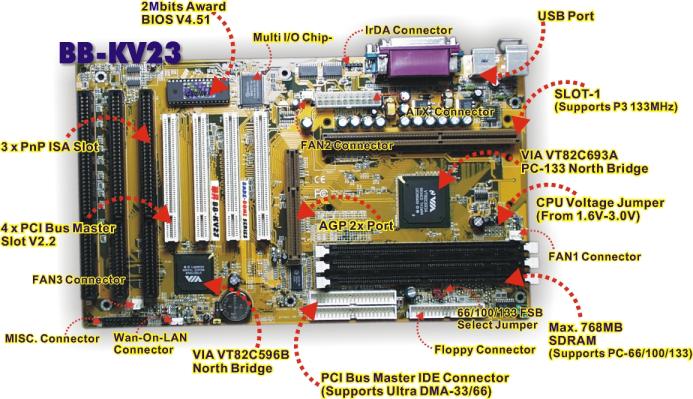

| Processor: |
 Intel Slot-1 Design, Support ALL
Intel Celeron/Pentium-II/III/IIIE/IIIEB CPU (Pentium-III
133MHz FSB Supported) |
| Chipset: |
VIA VT82C693A PC-133 North-Bridge
VIA VT82C596B South-Bridge Newest Chipset |
| BIOS: |
2Mbits
Award BIOS 4.51: Support Plug & Play, PCI 2.2, CD-ROM, ATAPI, LS-120 and IDE
device Multi Boot Method |
| Processor Clock: |
Support 66, 75, 83, 100, 103, 112, 124, 133, 140 &
150MHz FSB
(Max. 8x ratio) |
| Memory Size |
3 x 168pin DIMM SDRAM (Support
unbuffered 3.3V): Max. 768MB Main Memory |
| Internal I/O Port: |
1 x Floppy Port, 1 x ECP/EPP LPT Port, 2 x (16C550
UART) COM Port |
| External I/O Port: |
1 x PS/2 Mouse Port, 1 x PS/2
Keyboard Port |
| PCI IDE Interface: |
Max. 4 x IDE/ATAPI Device Interface, transfer data without any limitation |
| IDE Port : |
Support PIO Mode 4, Supports Ultra DMA 33/66 Transfer Mode |
| Extension: |
1 x AGP 2x 1.0 Port
(Sideband at 133MHz) |
|
4 x 32 bit PCI Bus Master
Standard Version 2.1 Interface |
|
3 x 16 bit ISA Bus |
|
2 x USB Port (Universal Serial
Bus) |
| Extension Kit: |
1 x IrDA Interface |
| Special Function: |
Selective Vcore By
Jumper (From 1.6V-3.0V, 0.1V up) |
|
66/100/133MHz Selectable Jumper,
Supports All FSB Intel CPUs |
|
SDRAM -33MHz Function
(If using 133MHz FSB CPU, the SDRAM can locked at 100MHz) |
|
Support
Win95/98/2000/Millennium/Redhat Linux 6.0 System Shutdown , Mouse, Keyboard, Telephone/LAN Wake Up Function |
|
Fully Support Advanced Configuration and Power
Interface(ACPI) |
|
Certificates of ISO9001, Y2K
Passed |
| Size: |
180mm x 305mm (L x W) |
| Mainboard Format: |
Standard ATX Form Factor |
|
|
