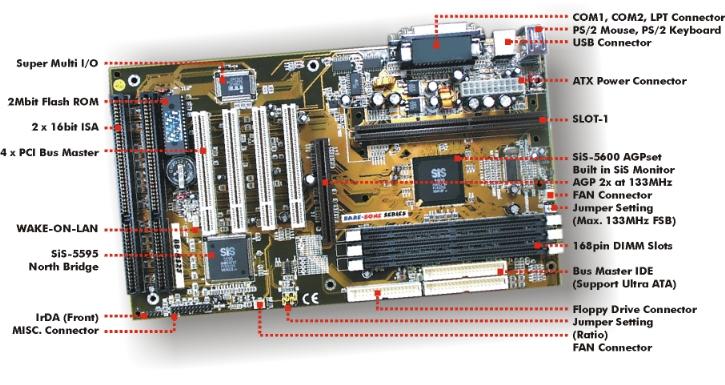

| Specification of KS23 |
|
| Processor: |
 |
Support all SLOT-1 Intel Pentuim II/ Celeron A
at 233-600MHz |
|
| Chipsets: |
|
SiS-5600 100MHz AGPsets, support Synchronous/
Asynchronous A.G.P. Clock |
|
SiS 5595 South Bridge |
|
| BIOS: |
|
Award BIOS 2Mbit flash
ROM support PnP, PCI 2.1, CD-ROM, ATAPI, LS-120, and any IDE device bootable |
|
| CPU Clock Select: |
|
Supports 66, 75, 83 , 95,
100 , 112, 124 & 133MHz Front Side Bus clock |
|
| System Memory: |
|
3 x 168pin DIMM slots support mixed momory
technologies: Extended Data Output(EDO), Fast Page(FP)DRAM, Synchronous DRAM(SDRAM) up to
768MB RAM |
|
| On-board Multi I/O: |
|
1 x FDD, 1 x ECP/EPP Parallel, 2 x (16C550
UART)COM ports |
|
1 x PS/2 Mouse port, 1 x PS/2 Keyboard port |
|
| PCI Bus Master IDE: |
|
PCI enhanced IDE interface with 4 IDE devices |
|
Supports up to PIO Mode 4, Ultra DMA Mode 2
(Ultra DMA33) |
|
Supports ATAPI compliance device included DVD
devices |
|
Supports Asynchronous
PCI Clock |
|
| Expansion Slots: |
|
1 x AGP 1.0 compliance interface supports both
1x and 2x speed mode with sideband address capability |
|
3 x 16-bit ISA slots with 100% ISA compatible
functions |
|
4 x 32bit PCI slots supporting PCI Bus Master
slots conform with PC]I specifications version 2.1 |
|
2 x Universal Series Bus(USB) connector |
|
| Options: |
|
2 x Infrared(IrDA)wireless interface kit |
|
| Extended Features: |
|
SiS 5600 OnChip Hardware monitoring: TEMPERATURE,
VOLTAGE, FAN SPEED MONITOR feature & Trend ChipAwayVirus in BIOS |
|
Keyboard,
Mouse, Modem & LAN power on/wake up feature |
|
Compliant
with Y2K & Advanced Configuration and Power Interface(ACPI) |
|
| Dimensions: |
|
180mm x 304mm (L x W) |
|
| Form Factor: |
|
ATX form factor |
|
