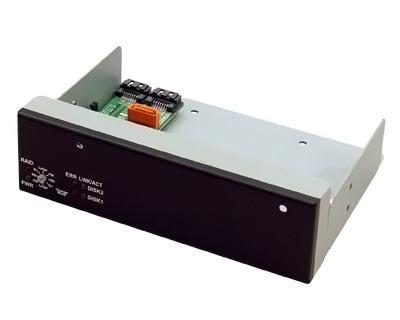

BB-iMirror525A One to Dual SATA Port Multiplier RAID Controller (Hardware RAID 0/1)















iMirror525A is a Dual SATA RAID subsystem for two 2.5” and/or 3.5" SATA HDD
A true hardware solution, iMirror525A requires no software to be installed on your machine
It provides 4 hardware RAID mode:
  • Large (Big drive)
  • RAID 0 (Stripping)
  • RAID 1 (Mirroring)
  • Port Multiplier

iMirror525A delivers the performance and data protection capabilities required for workstations and high-end
desktops.
With the high-speed transfer rate at 3.0 Gbs (300MB/s) provided by SATA II, iMirror525A truly offers the
unmatchable I/O performance to its users.




BB-iMirror525A One to Dual SATA Port Multiplier RAID Controller (Hardware RAID 0/1) :
  • 5.25” ODD form factor (Reserved space for 3.5" SATA HDD)
  • Good support for SSD
  • Supports 2-port 3.0Gbps SATA II interface
  • Provides power & Access LEDs for each HDD
  • Supports various RAID
  • Large (Big drive)
  • RAID 0 (Stripping)
  • RAID 1 (Mirroring)
  • *Port Multiplier
  • Provides RAID setting Rotary switch in the front panel
  • Provides Buzzer for RAID error warning

    I/O Interface SATA
    RAID Level
    • Large (big drive)
    • RAID 0 (Stripping)
    • RAID 1 (mirroring)
    • *Port Multiplier
    Status LEDs
    • Power, RAID Status LEDs
    • SATA Link & Activity, Error Indicator LEDs
    RAID Configuration
    • RAID Mode Rotary Switch
    • Change Mode Button
    Alarm Buzzer Buzzer for RAID error alarm
    Max. HDD Bay / Type Two 2.5" (Height=9.5mm) SATA HDDs
    DC Power Mini 4-pin Floppy Disk Drive like power Connector
    Form Factor 5.25” ODD (Optical Disk Drive) form factor
    Dimension 146.6(W) x 42(H) x 132.8(D) mm



Hardware Requirements
  • SATA Port x 1
  • *PM Function: Port Multiplier Supported Host Controller

OS Requirements
No need additional drivers

Additional Links / Notes








Specifications are subject to change without notice.
All brands and product names are trademarks of their respective companies
All Products are made in Taiwan
