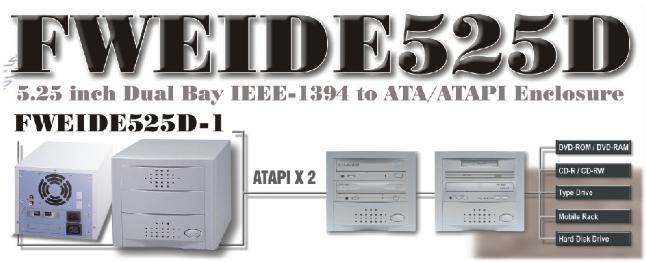

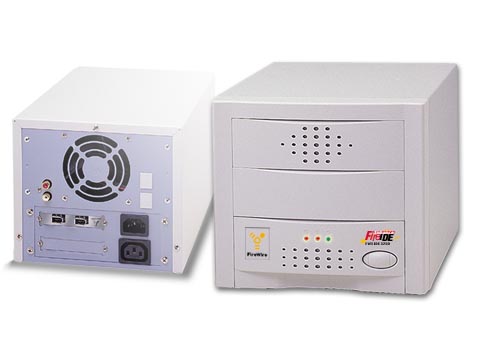

BB-FWEIDE525D-1 IDE to IEEE1394a 5.25" Dual Bay Enclosure











Enhance FireIDE









BB-FWEIDE525D-1 IDE to IEEE1394a 5.25" Dual Bay Enclosure Feature:
bluebullet.gif (834 bytes) Compliant IEEE 1394 and compatible with proposal 1394A
bluebullet.gif (834 bytes) Fully Supports ATA33/66/100/133 TWO IDE Device Interface
bluebullet.gif (834 bytes) Hot-Plug, Plug & Play, *no need install drivers
bluebullet.gif (834 bytes) Fit 5.25" and 3.5" form factor Two IDE devices,
Complies with T13's ATA/ATAPI-6 Draft Specification:
 Fully Supports 48-bit addressing for large hard drives (>128GB) including IEEE1394 interface
 Seagate 160GB, IBM 180GB, Western Digital 250GB, Maxtor 300GB HDD Supported
And Supports DVD-RAM, DVD-/+RW, CDRW-ROM, ZIP, JAZ, ORB 2.2GB, MO, etc drive.
bluebullet.gif (834 bytes) Save Money, Easy installation, No need setup ID or Terminators
43Mbyte/sec Max. Data Transfers

Hardware Requirements:
bluebullet.gif (834 bytes) Desktop PC: with either a built-in IEEE1394 port or a IEEE1394 to PCI Host Adapter
bluebullet.gif (834 bytes) Notebook PC: with either a built-in IEEE1394 port or a IEEE1394 to CardBus PC Card

OS Requirements:
bluebullet.gif (834 bytes) *Supports Windows 98SE/ME/2000/XP/2003 built-in SBP2 drivers
Mac OS 9.1, Mac OS-X 10.x or later
Linux 2.4 Kernel or later
(CDRW, DVD-/+RW in Windows 2000/XP Fully Support)
(CDRW, DVD-/+RW in Mac OS 9.1/9.2/9.21/9.22  with Roxio Toast 5.02 Titanium Fully Support)
(CDRW, DVD-/+RW in Mac OS X 10.2  with Roxio Toast 5.x Titanium For Mac OS X Fully Support)
(CDRW, DVD-/+RW in Redhat Linux 7.3/8.0  with Kernel 2.4.18 or above, and use SCSI Emulation Mount with IEEE1394 module)

Additional Links / Notes:
IEEE1394 Patch
bluebullet.gif (834 bytes) Windows 2000 User:IEEE1394 Services Pack 4 (Recommend)
Download Windows 2000 SP4
Download Windows XP SP1
Roxio Toast 5.02 Titanium Burning Tools








Specifications are subject to change without notice.
All brands and product names are trademarks of their respective companies
All Products are made in Taiwan
