BB-FWB-PCIE1X21A PCI Express OHCI IEEE1394b Host Controller (800Mbits)

















The FWB-PCIE1X21A combines an OHCI (Open Host Controller Interface) and a high-performance, standards-compliant PCI Express 1.1 host system interface to provide S800 1394b-2002 compliant throughput in a small PCB (Printed Circuit Board) and low power dissipation.

MultipleVCs (Virtual Channels) on the PCI Express link provide native support for QoS (Quality of Service) transmission for real-time and multimedia applications in a standards-based framework, ensuring compatibility with current and future operating systems. Active-state power management allows dynamic power management during periods of reduced network activity.



BB-FWB-PCIE1X21A PCI Express OHCI IEEE1394b Host Controller (800Mbits) Feature:
PCI Express:
  • Designed for compliance with PCI Express.
  • Multiple virtual channel (VC0,VC1 ) support fordiffe-rentiating 1394 isochronous traffic.
  • Supports eight user-programmable traffic classes.
  • 64-bit and 32-bit platform support.
  • Interrupts via legacy INTx interface or message sig-naled interrupt (MSI).
  • Supports PCI Express clock power management viaCLKREQN signal for form factors that support thisprotocol.
  • Supports all linkpowermanagement states (L0,L0s,L1,andL2/L3) and active state power management(ASPM).
  • Supports wake-up from a low-power state via in-bandbeacon signaling and side-band WAKE_N signal.
OHCI (Open Host Controller Interface)
  • Enhanced with the OHCI 1.2 draft specification for 1394b-2002 PHY full operational compliance.
  • OHCI 1.0 backwards compatible. Configurable via EEPROM to operate in either OHCI 1.0 or OHCI 1.1 mode.
  • 8 Kbyte isochronous transmit FIFO.
  • 4 Kbyte asynchronous transmit FIFO.
  • 8 Kbyte isochronous receive FIFO.
  • 8 Kbyte asynchronous receive FIFO.
  • Dedicated asynchronous and isochronous descriptor-based DMA engines.
  • Eight isochronous transmit contexts.
  • Eight isochronous receive contexts.
  • Supports parallel processing of incoming physical read and write requests.
  • Supports up to 48-bit addressing per OHCI specifica-tion for the physical DMA transfers.
1394b-2002 Link
  • Cycle master and isochronous resource manager capable.
  • Supports 1394a-2000 and 1394b-2002 acceleration features.
1394b-2002 PHY

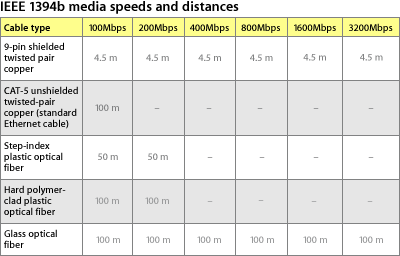

  • Provides three IEEER 1394b-2002 compliant ports sup-porting 1394b-2002 speeds of 800 Mbits/s and 400Mbits/s while maintaining backward compatibility to IEEE 1394a-2000 speeds of 100 Mbits/s, 200Mbits/s, and 400 Mbits/s over 4.5 m copper.
  • Fully supports provisions of IEEE 1394a-2000 and 1394-1995 standards for high-performance serial bus.
  • Link is not required for hub operation.
  • Supports extended BIAS_HANDSHAKE time for enhanced interoperability with camcorders.
  • Does not require external filter capacitor for PLL.
  • Supports arbitrated short bus reset to improve utiliza-tion of the bus.
  • Supports ack-accelerated arbitration and fly-by concat-enation.
  • Supports PHY pinging and remote PHY access pack-ets.
  • Fully supports suspend/resume.

    Reports cable power fail interrupt when voltage at CPS ball falls below 7.5 V.
Number of Ports:
  • Two Bilingual P1394b Cable Ports with Screw Holes for Jackscrew Type Plug Cable+ One Firewire 1394a Cable Port
Bus Power Connector:
  • Big IDE 4-pin DC Power Connector
bluebullet.gif (834 bytes) Fully Supports Provisions of IEEE P1394b Revision 1.33+ at 1-Gigabit Signaling Rates
bluebullet.gif (834 bytes) Fully Supports Provisions of IEEE 1394a-2000 and 1394b-2002 Standard for High Performance Serial Bus
bluebullet.gif (834 bytes) Fully Interoperable With Firewire., i.LINK., and SB1394. Implementation of IEEE Std 1394
bluebullet.gif (834 bytes) 2 External 9pin (bilingual) and 1 External 6pin ports at 100Mbits/s, 200Mbits/s, 400Mbits/s and *800Mbits/s, Backward compatible with 1394a (FireWire 400)
bluebullet.gif (834 bytes) D0, D1, D2, and D3 power states and PME events per the PCI Bus Power Management Interface Specification
bluebullet.gif (834 bytes) bus power your peripherals on each of the 3 ports with up to 18W per port with an optional internal power cable
bluebullet.gif (834 bytes) 12VDC Connector (External device for example 2.5" HDD or 1394 Hubs)
bluebullet.gif (834 bytes) Connecting up to 63 IEEE1394/FireWire devices
bluebullet.gif (834 bytes) JVC, Panasonic, Sharp, Canon, Sony DV/D8 Camcorder Supports
bluebullet.gif (834 bytes) Can DV-IN by supported DV Camcorder with Cable (Optional)

Hardware Requirements
bluebullet.gif (834 bytes) Intel PC or Apple Power Mac G4 with One available PCI Express x1 Slot

OS Requirements
bluebullet.gif (834 bytes) Supports Windows 98SE/ME/2000/XP/2003 built-in OHCI drivers for 1394a 400Mbits
 Supports Windows 98SE/ME/2000/XP/2003 built-in OHCI drivers for 1394b 800Mbits
Mac OS-X 10.2.5 or later
Linux 2.5 Kernel or later

Additional Links / Notes
IEEE1394 Patch
bluebullet.gif (834 bytes) Windows 2000 User:IEEE1394 Services Pack 4 (Recommend)
Download Windows 2000 SP4
Download Windows XP SP1
bluebullet.gif (834 bytes) BB-U2FWEIDE525-2 FireWire 5.25" Enclosure (FireWire CD/DVD Duplicator)
bluebullet.gif (834 bytes) BB-FWEIDE525D-800 FireWire 5.25" Dual-Bay Enclosure (1394b 800Mbits)
bluebullet.gif (834 bytes) *Must use with 1394b 9pin to 9pin Cable for 800Mbits Transfers
bluebullet.gif (834 bytes) Windows 98SE/ME may be not perfectly at FireWire 800.

9 pin to 4 pin

 9 pin to 6 pin 9 pin to 9 pin









Specifications are subject to change without notice.
All brands and product names are trademarks of their respective companies
All Products are made in Taiwan
