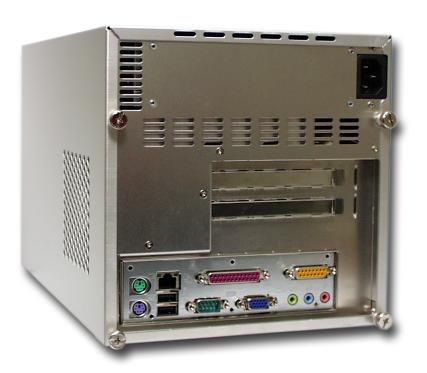

BB-@BOX-P4G/P4GE ALUMINUM Mini Barebone
(Supports Two 5.25" devices)





BB-@BOX-P4G
BB-@BOX-P4G




Intel (R) Pentium(R) 4 Processor







BB-@BOX-P4G/P4GE Mini Barebone (Supports Two 5.25" devices) Feature:

Chassis:
bluebullet.gif (834 bytes) Mini Flex-ATX Complete ALUMINUM Construction with 5mm Acrylic Front Panel
bluebullet.gif (834 bytes) Front USB, IEEE1394, Audio-out, Mic-in Connector & Power-on, Reset Switch
bluebullet.gif (834 bytes) Front Light Blue & Orange Power/Access LED
bluebullet.gif (834 bytes) Can Install TWO 5.25" devices, ONE 3.5" device (FDD) & ONE 3.5" device (HDD)
bluebullet.gif (834 bytes) P4 180W 110-220V Power Supply (+12V=10A, +5V=15A, +3.3V=14A)

Mainboard:
bluebullet.gif (834 bytes) Intel 845G(P4G)/845GE(P4GE) + ICH4 Chipsets, Flex ATX Form, Industry Level and 6 Layer design
bluebullet.gif (834 bytes) Supports 400/533MHz FSB Socket478 Intel Celeron/Pentium4 HTT Processor up to 3.06GHz+
bluebullet.gif (834 bytes) Two 184pin DIMM Slots, supports 200/266/333MHz DDR-SDRAM, Max. 2GB Memory
bluebullet.gif (834 bytes) Supports Ultra ATA33/66/100 IDE Interface (Up to 4 devices)
bluebullet.gif (834 bytes) Built-in Intel Extreme Graphics Chipsets
bluebullet.gif (834 bytes) Built-in Intel USB 2.0 Serial Bus Controller (Max. 480Mbits)
bluebullet.gif (834 bytes) Built-in Intel PRO100 VE 10/100Mbps LAN Adapter
bluebullet.gif (834 bytes) Built-in VIA VT6306 IEEE1394a Host Controller (Max. 400Mbits)
bluebullet.gif (834 bytes) (Special PCI+AGP Riser Card) Support ONE 4xAGP Port & ONE PCI Slot Expansive

Link & Other Notes
bluebullet.gif (834 bytes) Free P4 Powerful Heat Sink with Cooling FAN

ADD-ON-CARDs Limit:
PCI Card Length : 16cm. (Full Size)
AGP Card Length : 16.5cm. (Full Size)
If  AGP Card longer than 16.5cm, than 3.5" front device may be cannot use.(*See the AGP board design.)
*:Geforce4 MX420/440/440SE, GeforceFX-5200 or Radeon 7500/9000 can use.
If not install 3.5" Floppy Drive, can install high-end level AGP display card.








Specifications are subject to change without notice.
All brands and product names are trademarks of their respective companies
All Products are made in Taiwan
