BB-U2EIDE525D-1 (ALi-M5621 IDE to USB2.0 Chipset) Enclosure
(ALi-M5621 compare ISD-300A1 IDE to USB 2.0 Chipsets)
|
Test Hardware configuration: |
| Intel Pentium4 1.6AGHz CPU |
| Intel 845E+ICH4 Chipsets ATX Mainboard (Built-in USB2.0 Controller) |
| 512MB 266MHz PC2100 DDR-SDRAM |
| 80GB Hard Drive (OS Boot) |
| Geforce2 Ti with 32MB DDR AGP4x Display |
| BB-U2EIDE525D-1 IDE to USB2.0 (ALi-M5621
Chipset) Dual-Bay Enclosure (Set Master & One Drive) IBM Deskstar 120GXP 40GB ATA100 Hard Drive (7200rpm, 2MB Cache) Model: IC35L040AVVA07-0 |
|
Compare |
| BB-U2FWEIDE525 IDE to USB2.0/1394 (ISD-300A1
Chipset) Combo Single-Bay Enclosure IBM Deskstar 120GXP 40GB ATA100 Hard Drive (7200rpm, 2MB Cache) Model: IC35L040AVVA07-0 |
|
Test Software |
| Chinese Windows XP Home Edition + Intel USB 2.0 driver + XP USB Hotfix |
| WinBench 99 2.0 (Disk Inspection Test) |

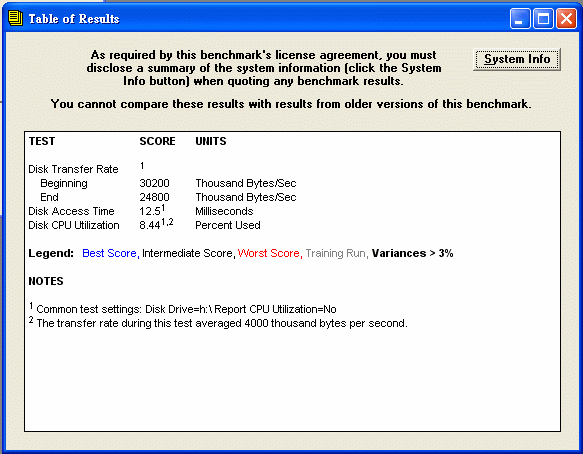

BB-U2EIDE525D-1 (ALi-M5621 IDE to USB2.0 Chipset) Enclosure

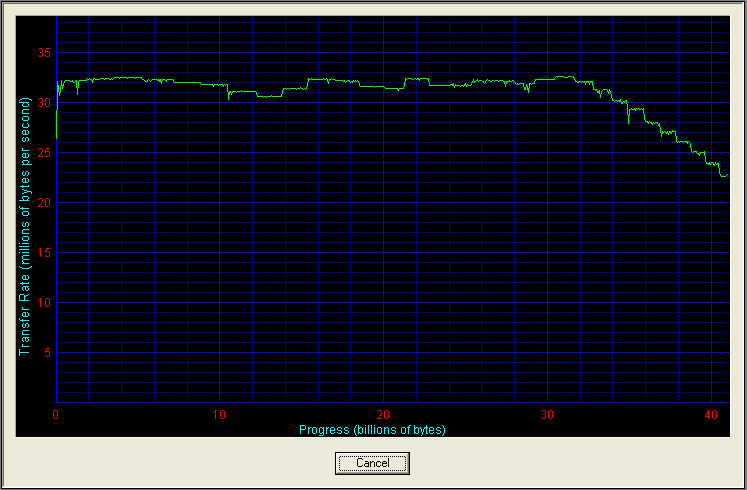

BB-U2EIDE525D-1 (ALi-M5621 IDE to USB2.0 Chipset) Enclosure

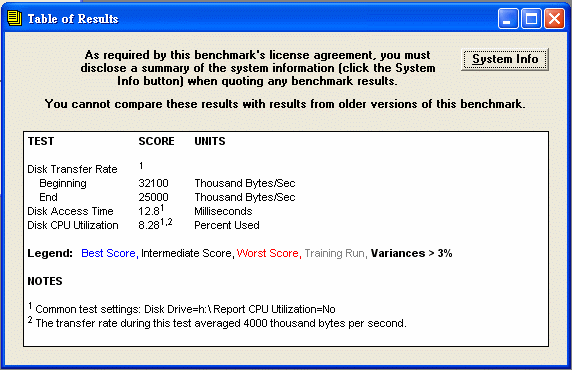

BB-U2FWEIDE525
(ISD-300A1 IDE to USB2.0 Chipsets)

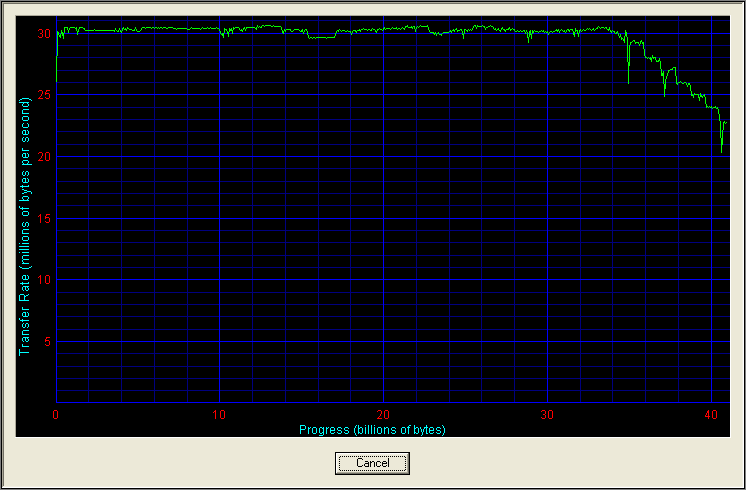

BB-U2FWEIDE525 (ISD-300A1 IDE to USB2.0 Chipsets)
