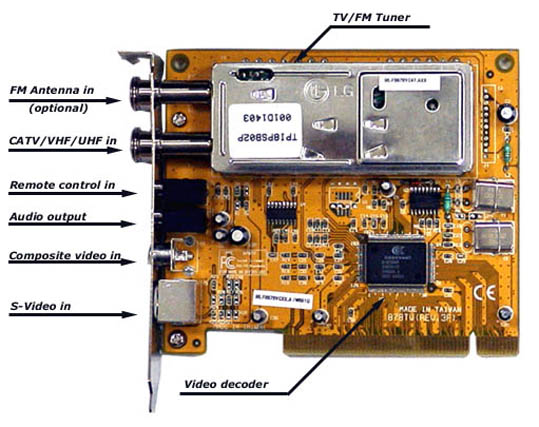

BT878 Chipsets |
|
|
Fully PCI Rev 2.1
compliant |
|
|
Supports Windows 95/Windows 98 |
|
|
Supports NTSC, PAL or
SECAM video formats |
|
|
FM band coverage from 87.5
to 108MHz |
|
|
Combined S-Video & Composite video input |
|
|
Supports planner YUV data
format |
|
|
VBI data capture for
closed captioning data decoding |
|
|
Includes software teletext
decoding |
|
|
最低系統要求(只供TV/FM功能): |
|
|
Intel Pentium 90MHz or higher, and compatible computer |
|
|
Mainboard with Intel 430FX
chipset or higher |
|
|
PCI local bus PnP 2.1
compliant |
|
|
SVGA support higher than 640x480 / Hi-color |
|
|
Sound Card support for audio mix functions |
|
|
Cable/VHF/UHF antenna
|
|
|
Windows95/98 |
|
|
DirectX Ver.5.0 or higher |
|
|
Minimum hard disk free space of 5M bytes |
|
|
建議系統要求(AVI,
MPEG1/2實時擷取功能): |
|
|
Intel Celeron 533AMHz or higher, and
compatible computer |
|
|
32MB SDRAM Memory (64MB Recommend) |
|
|
2GB DMA Mode Hard Disk Drive (For editing and
capture) |
|
|
16bit Sound System |
|
|
AGP Graphics Card with MPEG decoder |
|
|
Windows 98SE |
|
|
附送最新MGI Videowave III SE Plus軟件,音效及制作VCD, MPEG1, MPEG2壓縮等檔案
可作實時擷取VCD,MPEG1/2檔案(Up to 640x480), 無須Rerendering |
|
|
附送紅外線搖控器, Video接線及FM接收天線 |
|
|
File Format support
Input format
Video: DV, MPEG1, MPEG2, AVI, MOV
Image: BMP, JPG, EPS, FPX, MAC, PCD, PCT, PCX, PNG, TGA, TIF, WMF
Audio: AVI, MOV, MIDI, MPEG, WAV, Microphone, Music CD, Line in |
|
|
Output
format
Video: DV-AVI, MPEG1, MPEG2, AVI, BMP, JPG, TIF |
|
|
If
you create Video CD, you need to use Adaptec Easy CD Creater 4.x Deluxe, NTI CD Maker and Nero Burn 5.x VCD Format is 140KB/s Transfer Rate. |
Additional Links / Notes |
|
|
制作MPEG實時擷取範本
(只供VWIIISE+及BT878 TV/FM 影像擷取卡) |
|
