華 昇 BB-SATA-IDE03 IDE 轉 換 SATA 卡






新 舊 介 面 完 全 兼 容 方 案！

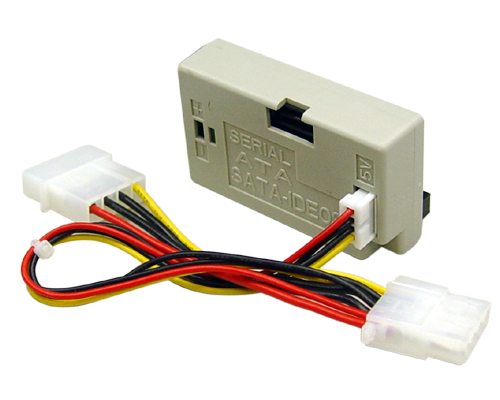

SATA-IDE03

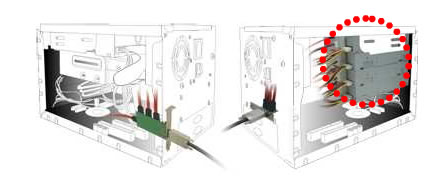

SATA-IDE03 is a Parallel ATA to Serial ATA Device mode Bridge Board featuring Marvell 88SA8040 Serial ATA bridge Controller.SATA-IDE03 is ideally suited for tailgate interface applications for converting Parallel ATA device to Serial ATA device. Both ATA and ATAPI modes are supported using the same firmware.It allows PATA drive to be connected to SATA host controller. SATA-IDE03 provides the perfect solution for legacy IDE (ATA/ATAPI) devices to be attached by new SATA host controller.



功 能 簡 介:
bluebullet.gif (834 bytes) Serial ATA to Parallel ATA Bridge Board :
  • Serial ATA:
    • Compliant with Serial ATA 1.0
    • Serial ATA Hot-Plug
    • Serial ATA II Set Features for Disabling Device-Initiated Serial ATA Power Management.
    • Enhanced Receiving FIFO Flow Control for Serial ATA Link.
  • Transfer Rate:
    • Supports PIO and DMA modes
    • Supports bus master DMA at 1.5Gbps burst rate
  • Serial ATA Connector:
    • One Signal Plug Port
  • Parallel ATA:
    • ATA/ATAPI PIO Mode Data Transfer
    • ATA/ATAPI UDMA Data Transfer rates of 16.7, 25, 33, 44, 66, 100, 133 and 150MB/s.
    • ATA/ATAPI Packet Command Feature Set.
    • INF-8090i Packet Commands.
    • ATA/ATAPI-7 Streaming Feature set.
    • ATA/ATAPI-7 Force Unit Access Commands.
    • ATA/ATAPI 48-bit Address Feature set.
  • Parallel ATA Connector:
    • Female IDC 2X20 pin Connector
  • DC Power Connector:
    • Mini 4-pin floppy type power connector
  • Direct Connect Vertical type
  • Physical Dimensions:6.00cm x 3.20cm x 2.20cm

硬 體 需 求:

系 統 需 求:
bluebullet.gif (834 bytes) Windows 98, ME, NT4, XP, 2000, 2003, Netware, Linux
