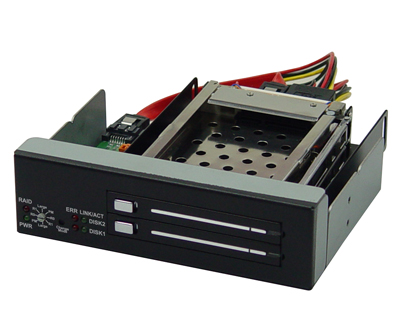

華 昇 BB-iMirror25A Dual SATA RAID subsystem with two 2.5" Mobile Racks (硬體 RAID 0/1)

iMirror25A is a Dual SATA RAID subsystem with two Mobile Racks for two 2.5” SATA HDDs or SSDs
A true hardware solution, iMirror25A requires no software to be installed on your machine
It provides 4 hardware RAID mode:

• Large (big drive)
• RAID 0 (Stripping)
• RAID 1 (mirroring)
• Port Multiplier

iMirror25A delivers the performance and data protection capabilities required for workstations and high-end desktops.
With the high-speed transfer rate at 3.0 Gbs (300MB/s) provided by SATA II, iMirror25A truly offers the unmatchable I/O performance to its users.
Patented multi-nationally and designed with front loading, iMirror25A has made the HDD installation tool free, quick, and easy. Simply pull and push!

華 昇BB-iMirror25A Dual SATA RAID subsystem with two 2.5" Mobile Racks 功 能 簡 介:

• 5.25” ODD ( Two hot-swappable 2.5" HDD Mobile Rack (support 2.5" SATA HDD))
• Good support for SSD.
• Supports 2-port 3.0Gbps SATA II interface
• Provides power & Access LEDs for each HDD
• Supports various RAID
  • Large (Big drive)
  • RAID 0 (Stripping)
  • RAID 1 (Mirroring)
  • Port Multiplier
• Provides RAID setting Rotary switch in the front panel
• Provides Buzzer for RAID error warning

I/O Interface SATA RAID Level Large (big drive) RAID 0 (Stripping) RAID 1 (mirroring) *Port Multiplier Status LEDs Power, RAID Status LEDs SATA Link & Activity, Error Indicator LEDs RAID Configuration RAID Mode Rotary Switch Change Mode Button Alarm Buzzer Buzzer for RAID error alarm Max. HDD Bay / Type Two 2.5" (Height=9.5mm) SATA HDDs DC Power Mini 4-pin Floppy Disk Drive like power Connector Form Factor 5.25” ODD (Optical Disk Drive) form factor Dimension 146.6(W) x 42(H) x 132.8(D) mm



硬 體 需 求:

• SATA Port x 1
• *PM Function: Port Multiplier Supported Host Controller
