• S400 (50 Mbytes) Compliant 1394-1995 Link and Transaction layers
• Microsoft Win98-SE, Win2000, Win-ME and Mac OS generic driver support
• SBP-2 Target Revision 4 compliant interface
• Support dual device
• Full ATA-5 compliant
• Supports for UDMA5 (ATA100)
• Sustained data transfer of 35MB/s
• Supports PIO modes 0 to 4, DMA modes 0 to 2 and Ultra DMA modes 0 to 5
• ORB co-processor to accelerate translation of ORBs to ATAPI commands
• Max transfer cache memory 2048K
• Integrated 512KB Flash memory

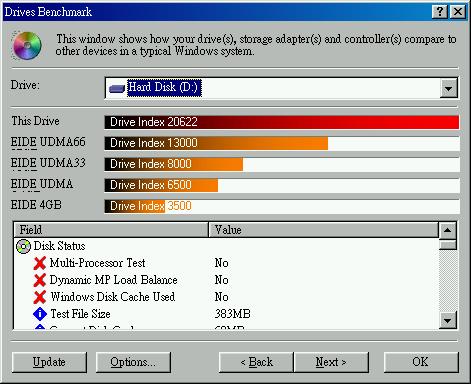

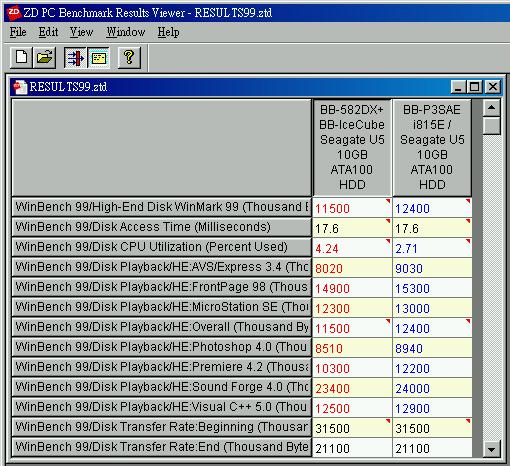

2. Performance Test System Configuration

• Upload settings on board
• PIO 0 to 4 selected
• DMA 0 to 2 selected
• UDMA 0 to 5 selected
• Transfer packet size 2048
• Device type set to Hard Drive
• Firmware Nov 15 2000
• Using BB-P3SAE-L, Intel Celeron 900MHz (100 X 9.0), 256MB SDRAM.
• Seagate 10GB U5 ATA100 Hard Drive
