華 昇 BB-FWB-PCIE1X11A PCI
Express TI OHCI IEEE1394
主 控 制 卡 |
||||
|
||||

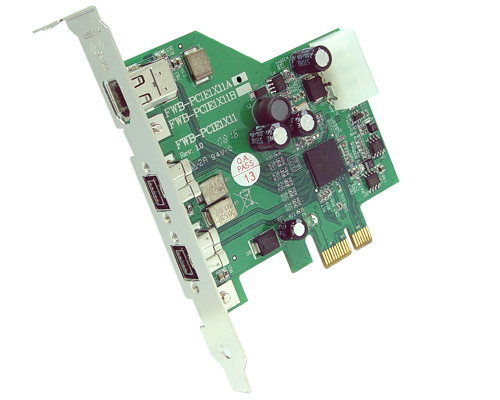

FWB-PCIE1X11A is designed with Texas Instruments XIO2213A controller. The Texas Instruments XIO2213A is a PCI Express to PCI translation bridge where the PCI bus interface is internally connected to a 1394b open host controller link-layer controller with a three-port 1394b PHY. The PCI-Express to PCI translation bridge is fully compatible with the PCI Express to PCI/PCI-X Bridge Specification, Revision 1.0. Also, the bridge supports the standard PCI-to-PCI bridge programming model. The 1394b OHCI controller function is fully compatible with IEEE Standard 1394b and the latest 1394 Open Host Controller Interface (OHCI) Specification. Deep FIFOs are provided to buffer 1394 data and accommodate large host bus latencies. The device provides physical write posting and a highly tuned physical data path for SBP-2 performance. The device is capable of transferring data between the PCI Express bus and the 1394 bus at 100M bits/s, 200M bits/s, 400M bits/s, and 800M bits/s. FWB-PCIE1X11A provides full PCI Express and 1394b functionality and performance. |
華 昇 BB-FWB-PCIE1X11A PCI Express TI OHCI IEEE1394 主 控 制 卡 (1394b 800Mbits 傳 輸) 功 能 簡 介: |
||||||||||
|
||||||||||
完 全 支 援 Provisions of IEEE P1394b Revision 1.33+ 高 達 1-Gigabit 信 號 率 | ||||||||||
完 全 支 援 Provisions of IEEE 1394a-2000 and 1394b-2002 Standard for High Performance Serial Bus | ||||||||||
完 全 符 合 Firewire,i.LINK. 及 SB1394 實 施 之 IEEE Std 1394 內 部 使 用 性 | ||||||||||
2 組 外 置 9pin
(bilingual) 接 頭,1
組 外 置 6pin
接 頭,可 提 供 100Mbits/s,200Mbits/s,400Mbits/s
及 *800Mbits/s
傳 輸 速 度 可 向 後 兼 容 1394a (FireWire 400) 規 格 |
||||||||||
PCI Express 1.1 介 面 規 格 | ||||||||||
D0,D1,D2,and D3 power states and PME events per the PCI Bus Power Management 介 面 規 格 | ||||||||||
接 埠 可 提 供 高 達 18W 電 源 輸 出 (須 連 接 12VDC 電 源) | ||||||||||
內 建 Big IDE 4pin 12VDC 電 源 接 頭 (提 供 足 夠 電 源 供 外 置 裝 置,使 用 如 外 接 盒 或 IEEE1394b Hubs | ||||||||||
可 同 時 連 接 多 達 63 種 裝 置 | ||||||||||
支 援 JVC,Panasonic,Sharp,Canon,Sony DV/D8,Samsung 等 手 提 DV 攝 錄 機 | ||||||||||
亦 可 再 透 過 9pin-4pin 專 用 接 線 (需 另 購),擷 取 DV 攝 錄 機 資 料 (影 像) 或 將 制 作 好 的 DV 資 料 回 傳 到 已 支 援 的 DV 攝 錄 機 中 (PAL/NTSC) | ||||||||||
硬 體 需 求: |
||||||||||
Intel PC or Apple Power Mac G4 with One available PCI Express x1 Slot | ||||||||||
系 統 需 求: |
||||||||||
1394a 400Mbits
支 援 Windows 98SE/ME/2000/XP/2003 內 置
OHCI 驅 動 程 式 1394b 800Mbits 支 援 Windows 98SE/ME/2000/XP/2003 內 置 OHCI 驅 動 程 式 Mac OS-X 10.2.4 或 以 上 版 本 驅 動 程 式 Linux 2.5 Kernel 或 以 上 版 本 驅 動 程 式 |
||||||||||
連 結 及 其 他: |
||||||||||
Windows 98SE
用 戶:IEEE1394 建 議 更 新 檔,(可 增 加 速 度 及 穩 定 性) 可 瀏 覽 IEEE1394 Patch 下 載 |
||||||||||
Windows 2000
用戶:IEEE1394 建 議 更 新 檔,(可 增 加 速 度 及 穩 定 性) 可 瀏 覽 Download Windows 2000 SP4 下 載 |
||||||||||
Windows XP
用 戶:IEEE1394 建 議 更 新 檔,(可 增 加 速 度 及 穩 定 性) 可 瀏 覽 Download Windows XP SP1 下 載 |
||||||||||
可 配 合 BB-FWBEIDE525D-1 FireWire-800 5.25" 雙 層 外 接 盒,發 揮 全 速 1394b 800Mbits 速 度 | ||||||||||
可 配 合 BB-U2FWEIDE525-2 FireWire 5.25" 外 接 盒,方 便 儲 存 DV 影 像 或 自 建 流 動 型 CDRW | ||||||||||
1394b
專 用 接 線:
(需 另 購)
|
||||||||||
*須 配 合 1394b 9pin to 9pin beta 接 線,發 輝 800Mbits 速 度 (需 另 購) | ||||||||||
Windows 98SE/ME may be not perfectly at FireWire 800 feature. |
