Features |
|
Compliant with IEEE 802.3 10Base-T and
IEEE802.3u 100Base-TX Class II repeater specifications |
|
Supports sixteen RJ-45 ports
that can individually auto-negotiate between either 10Mbps or 100Mbps |
|
Supports an internal switch to bridge both
10Mbps and 100Mbps segments |
|
Stackable 10/100Mbps
repeater hub capable of stacking up to 4 units in one stack |
|

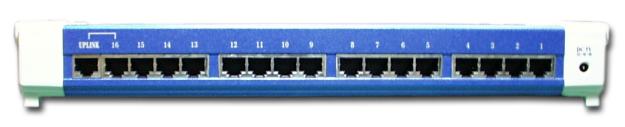

Provides an extra uplink port for easy
hub-to-hub connection via UTP cable |
|
Comprehensive LEDs indicate
link, activity, speed, and collision status |
|
Stylish outlook, aluminum case , lower price
and best performance |
|
|
Specifications |
Standard Conformance |
|
Communication :
IEEE 802.3 10Base-T Ethernet standard and IEEE 802.3u 100Base-TX Class II repeater
standard |
|
Network Cable : 10BASE-T:
Cat. 3, 4, 5UTP 100BASE-TX: Cat 5 UTP |
|
Network interface
: DH416 8 RJ-45 10/100Mbps Stackable Dual Speed Hub |
|
Chipsets : Lucent |
|
Physical Characteristics |
|
LED indicators : Easy to-view
LED indicators provide status for each port |
|
Dimensions
: DH416 : 328 x 140 x 47mm (LxWxH) |
|
Temperature : 0oC
~ 40oC (32F ~ 104F) |
|
Humidity :
5% ~ 90% RH |
|
Certification :
FCC Class A, CE mark Class A |
|
Input Power
Requirements |
|
Voltage : External Power
Adapter 5V |
|
|
