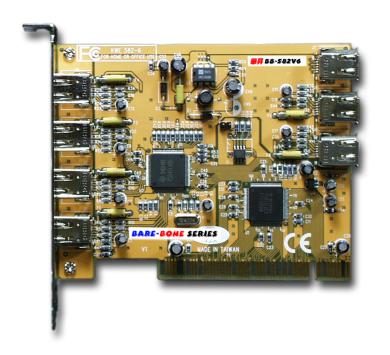

Texas
Instruments IEEE 1394 OHCI chipset on-board
(TSB12LV23 / TSB41LV06) |
|
|
Compliant IEEE 1394 and compatible with
proposal 1394A |
|
|
Supports up to 63 devices that can be run
simultaneously on a system |
|
|
Support
1394 Transfer Rate for 100/200/400Mbit per second |
|
|
Provides three sizes of programmable FIFO |
|
|
Provides
PCI Bus Master function
for supporting DMA
operations |
|
|
Provides PCI Slave function for read/write
access of internal Registers |
|
|
Programmable
5 channel address
comparator logic for receiving incoming 1394 packets and assigning them to a DMA channel |
|
|
Provides a programmable 8/16-bit external Local Bus for
implementing a dedicated data to external logic |
|
|
Operates
from a 3.3V power
supply while maintaining 5V tolerant input |
|
|
PCI specification V.2.2 compliant |
|
|
Perform 32 bit CRC checking on reception of
1394 packets. |
|
|
Support DMA transfers
between 1394 and local bus RAM, ROM, AUX or ZV |
|
|
Implements a
32-bit PCI address-data path. Provides PCI address-data parity checking |
|
|
Serial ROM Interface Supports
2-Wire Devices |
|
|
32-bit PCI Bus Master design. Provides three General Purpose I/Os |
|
|
Peer-to-Peer Communication
Structure |
|
|
Real-time
Transmission of Data Small, Durable, and Flexible Cable and Cable Connectors. |
|
|
Bus is Dynamically
Reconfigurable and Active. Termination is not Needed |
|
|
Lower cost & Best performance for capturing digital video and
audio from DV camcorders to PCs |
|
|
Fully compatible with Windows 98
/ 98 SE / 2000 pre-installed standard device driver |
|
|
最低系統配備: For DV Editing Requirement : Pentium II Class 333MHz
or higher, 64MB RAM. Windows 98 (Second Edition Recommend) or Windows 2000 Professional
Build 2195, Hard Disk at least keep 4MB/s transfer rate.
For MPEG2 Editing Requirement : Pentium II
350Mhz or Higher, 128MB RAM. AGP 2x Card Such as Riva TNT, Voodoo Banshee, Voodoo3, MPEG2
Decoder Compatible AGP Card. (Highly recommend P-III 450MHz for best quality in MPEG2
encoding) |
|
|
Operating environments:
Temperature from 0°C to 55 C°C
Relative humidity 95% maximum (Non-condensing) |
|
|
支援 Sony, JVC,
Panasonic, Sharp, Canon 等 DV 手提攝錄機 , 詳情可看我們最新的 DV Compatible List |
|
|
原裝4p to 6p i-Link及6p to 6p 1394專用接線 |
|
|
附送最新Ulead
Video Studio 4.0 SE Basic軟件可同時攝取或制作全數碼Digital影像,音效,壓縮及制作VCD, MPEG1等檔案;亦可再透過專用接線將資料互相傳送 |
|
|
If
you create Video CD, you need to use Adaptec Easy CD
Creater 4.x Deluxe, NTI CD Maker and Nero Burn 4.x VCD Format is 140KB/s Transfer Rate. |
