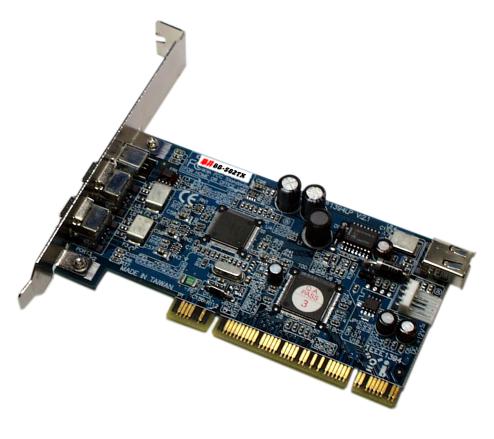

華昇BB-582TX TI IEEE1394 400Mbits PCI主控制卡 |
||||
最新的 BB-582TX 現在支援 Microsoft Windows Milliummun Edition 及 Adobe Premiere Release 6.0
New Version of MGI Videowave 3.5 SE PLUS With BB-582TX Only! It supports Direct Capture Type II-AVI For Adobe Premiere 5.1c! |
||||
| 如果你是
Microsoft Windows 98 用戶, 想達到最理想 Capture 效果 , 請升級到 Microsoft
Windows 98 Second Edition H.K. User : Visit Microsoft H.K. - http://www.microsoft.com/hk/windows98/how.htm T.W. User : Visit Taiwan H.K. : http://www.microsoft.com/taiwan/products/windows/win98se/promo/ 至於 Microsoft Windows 2000 Professional 或 Server 用戶請注意, BB-582DX+ 的 MGI Videowave III SE Plus DV Capture 軟件是完全支援以上作業系統 Power MAC 用戶請注意 :
BB-582TX 已經支援 Apple Power Macintosh , 請確定你的作業系統是 MAC OS 9.x
或以上及Firewire Extension 2.4 或以上 Linux
用戶請注意 : BB-582TX 已經支援 Linux DV-AVI Capture, Linux-to-Linux 1394
Networking BB-582DX Trouble Shooting #1 - Enable
DMA Mode of Hard Disk. 關於 MGI Videowave 3.5 SE Plus軟件技術問題可聯絡 MGI Support : support@mgisoft.com 我們最新的 Technical Support Page 在 http://www.bare-bone.com/support/ Windows 98SE 用戶請注意 :
1394建議更新檔，(可增加速度及穩定性) |
| 華昇BB-582TX TI IEEE1394 400Mbits PCI主控制卡(獨立4組接埠)簡介: | ||
 |
Texas
Instruments IEEE 1394 OHCI chipset on-board (TSB12LV26 / TSB41LV04A) |
|
|
Compliant IEEE 1394 and compatible with proposal 1394A | |
|
Supports up to 63 devices that can be run simultaneously on a system | |
|
Support 1394 Transfer Rate for 100/200/400Mbits | |
|
Provides Four sizes of programmable FIFO | |
|
Provides PCI Bus Master function for supporting DMA operations | |
|
Provides PCI Slave function for read/write access of internal Registers | |
|
Programmable 5 channel address comparator logic for receiving incoming 1394 packets and assigning them to a DMA channel | |
|
Provides a programmable 8/16-bit external Local Bus for implementing a dedicated data to external logic | |
|
Operates from a 3.3V power supply while maintaining 5V tolerant input | |
|
PCI specification V.2.2 compliant | |
|
Perform 32 bit CRC checking on reception of 1394 packets. | |
|
Support DMA transfers between 1394 and local bus RAM, ROM, AUX or ZV | |
|
Implements a 32-bit PCI address-data path. Provides PCI address-data parity checking | |
|
Serial ROM Interface Supports 2-Wire Devices | |
|
32-bit PCI Bus Master design. Provides Four General Purpose I/Os | |
|
Peer-to-Peer Communication Structure | |
|
Real-time Transmission of Data Small, Durable, and Flexible Cable and Cable Connectors. | |
|
Bus is Dynamically Reconfigurable and Active. Termination is not Needed | |
|
Lower cost & Best performance for capturing digital video and audio from DV camcorders to PCs | |
|
Fully compatible with Windows 98 / 98 SE / 2000 pre-installed standard device driver & Apple Mac OS 9.x with FireWire 2.4, Linux 2.2.14 , Linux 2.2.16 supported | |
|
最低系統配備: For DV Editing Requirement : Pentium II Class 333MHz or higher, 64MB RAM. Windows 98 (Second Edition Recommend) or Windows 2000 Professional Build 2195, Hard Disk at least keep 4MB/s transfer rate. For MPEG2 Editing Requirement : Pentium II
350Mhz or Higher, 128MB RAM. AGP 2x Card Such as Riva TNT, Voodoo Banshee, Voodoo3, MPEG2
Decoder Compatible AGP Card. 6GB Space for editing |
|
|
Operating environments: Temperature from 0°C to 55 C°C Relative humidity 95% maximum (Non-condensing) |
|
|
支援 JVC, Panasonic, Sharp, Canon, Sony DV/D8等手提攝錄機 | |
|
內建12VDC電源接頭(提供足夠電源供外置裝置, 使用如:2.5" HDD或1394 Hubs) 附400Mbits 4p to 6p及6p to 6p IEEE1394專用接線合供兩條 |
|
|
附送最新MGI Videowave 3.5 SE Plus軟件(VCD/MPEG2質素增強),可同時攝取或制作全數碼DV影像,音效及制作VCD, MPEG1, MPEG2, ASF壓縮等檔; MP3音效輸入及BMP, JPG, TIF圖像輸出; 新增十國語言,包括英文,中文繁体及簡体版本; 亦可再透過專用接線,將制作好的DV資料回傳到DV攝錄機(PAL/NTSC) 如配合BB-TV99 PCI BT878 FM/TV卡, 可作實時擷取VCD,MPEG1/2檔案(Up to 640x480), 無須Rerendering; |
|
|
附送最新MGI PhotoSuite III SE自制賀卡及私人照片剪貼;MGI PhotoVista可親自制作360 degree影像 | |
|
Real-time Capture Type1/2 DV-AVI by VideoWave 3.5 SE Plus
for Adobe Premiere 5.x (BB-582TX Package Only!) |
|
|
File Format support Input format Video: DV, MPEG1, MPEG2, AVI, MOV Image: BMP, JPG, EPS, FPX, MAC, PCD, PCT, PCX, PNG, TGA, TIF, WMF Audio: AVI, MOV, MIDI, MPEG, WAV, MP3, Microphone, Music CD, Line in |
|
|
Output
format Video: DV-AVI, MPEG1, MPEG2, AVI, ASF, BMP, JPG, TIF |
|
|
The BB-582TX
Package Contains : - Bare-Bone's IEEE-1394 Firewire Card (3 Ext. ports & 1 Int. Port) x 1 - 4p to 6p i-Link 1394 cable x 1 - Licensed MGI VideoWave 3.5 SE Plus Software CD x 1 - Licensed MGI PhotoSuite III SE & PhotoVista 360 degree Software CD x 1 - DV Upate driver CD x 1 - Bare-Bone's Warranty Card x 1 - Chinese & English User's Manual x 1 |
|
|
If you create Video CD, you need to use Adaptec
Easy CD Creater 4.x Deluxe, NTI CD Maker
and Nero Burn 5.x VCD Format is 140KB/s Transfer Rate. |
|
Additional Links / Notes |
||
|
Download the Video Sample VCD MPEG1 PAL 140KB/s | MPEG2 PAL 625KB/s (NEW) | |
|
制作MPEG實時擷取範本 (只供VW3.5SE+及BT878 TV/FM 影像擷取卡) (NEW) | |
|
See the VideoWave III SE Plus new feature:VCD, MPEG1 & MPEG2 Realtime capture (NEW) | |
|
How to upgrade Windows 98 Second Edition from Windows 98? (NEW) | |
|
When I Plug in my camcorder Windows does not recognize it and it does not appear in the device manager. | |
|
Fully Tested DV Camcorder (01-06-2001) | |
|
Sony, Panasonic, JVC Camcorder Note (Eupore PAL Version) | |
|
Tips for smooth video capture | |
|
DV Data in the AVI File Format | |
|
1394 FAQ Trouble Shooting | |
|
