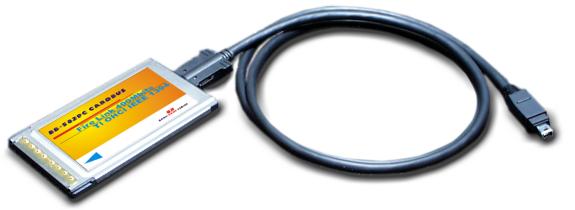

華昇 BB-582PC Cardbus TI IEEE1394 400Mbits 高速 PCMCIA 卡
　 　 　 　
　 　
　 　
　 　


　 The BB-582PC is a PC Card Adapter for the  connections of highper formance serial bus IEEE1394. It is designed to the provisions of the IEEE 1394-1995, P1394a, and OpenHCI enhancements. Up to 400 Mb/s data rate, hot-plugging, are provided for the Notebook PC peripheral connections. These features and the low-system cost make BB-582PC an ideal interconnection for numerous computers, multimedia devices, and consumer electronics. 　
　 　
　 　
　 　 　 　
　
華昇BB-582PC TI IEEE1394 Cardbus 400Mbits 高速 PCMCIA 卡功能簡介:
bluebullet.gif (834 bytes) PCMCIA Card Bus Interface with Power Management
bluebullet.gif (834 bytes) Compliant with the IEEE 1394-1995, P1394a, and OHCI standards
bluebullet.gif (834 bytes) Asynchronous and isochronous data transfer with 100/200/400 Mb/s
bluebullet.gif (834 bytes) 32-bit CRC checking on reception of 1394 data packets
bluebullet.gif (834 bytes) Hot plugging, dynamic reconfiguring of up to 63 nodes on the bus; no need to turn off the system while adding or removing 1394 devices
bluebullet.gif (834 bytes) PTC resettable fuses for reliable over-current protection
bluebullet.gif (834 bytes) Operating Temperature: 0 to 70 centigrade
bluebullet.gif (834 bytes) Card Size: 85.6 x 54.0 x 5.0mm, standard TYPE II PC card package
bluebullet.gif (834 bytes) Lower cost & best performance for capturing digital video and audio from DV camcorders to Notebook
bluebullet.gif (834 bytes) Fully compatible with Windows 98 / 98 SE / 2000 pre-installed standard device driver
bluebullet.gif (834 bytes) 支援 Sony, JVC, Panasonic, Canon, Sharp 等 DV 手提攝錄機 ,  詳情可看我們最新的 DV Compatible List
bluebullet.gif (834 bytes) 原裝 400Mbits 15pin PCMCIA Header with conversion cable to 4pin IEEE1394 專用接線 (6pin IEEE1394 Cable for optional)
bluebullet.gif (834 bytes) 附送最新 MGI Videowave III SE 軟件可同時制作或攝取全數碼 Digital 影像,音效;壓縮及制作 VCD, MPEG1, MPEG2 等格式;亦可再透過專用接線將資料互相傳送 (軟件不可另行發售)

Additional Links / Notes
　
　

　


所有產品如有變更,不作另行通知
各商標屬各公司所有
